Machine specification

• Electric power 3.7 kW–5.5 kW  (3 phase, 50 Hz, 380 V)
• Machine Weight ≈ 3.0 tons

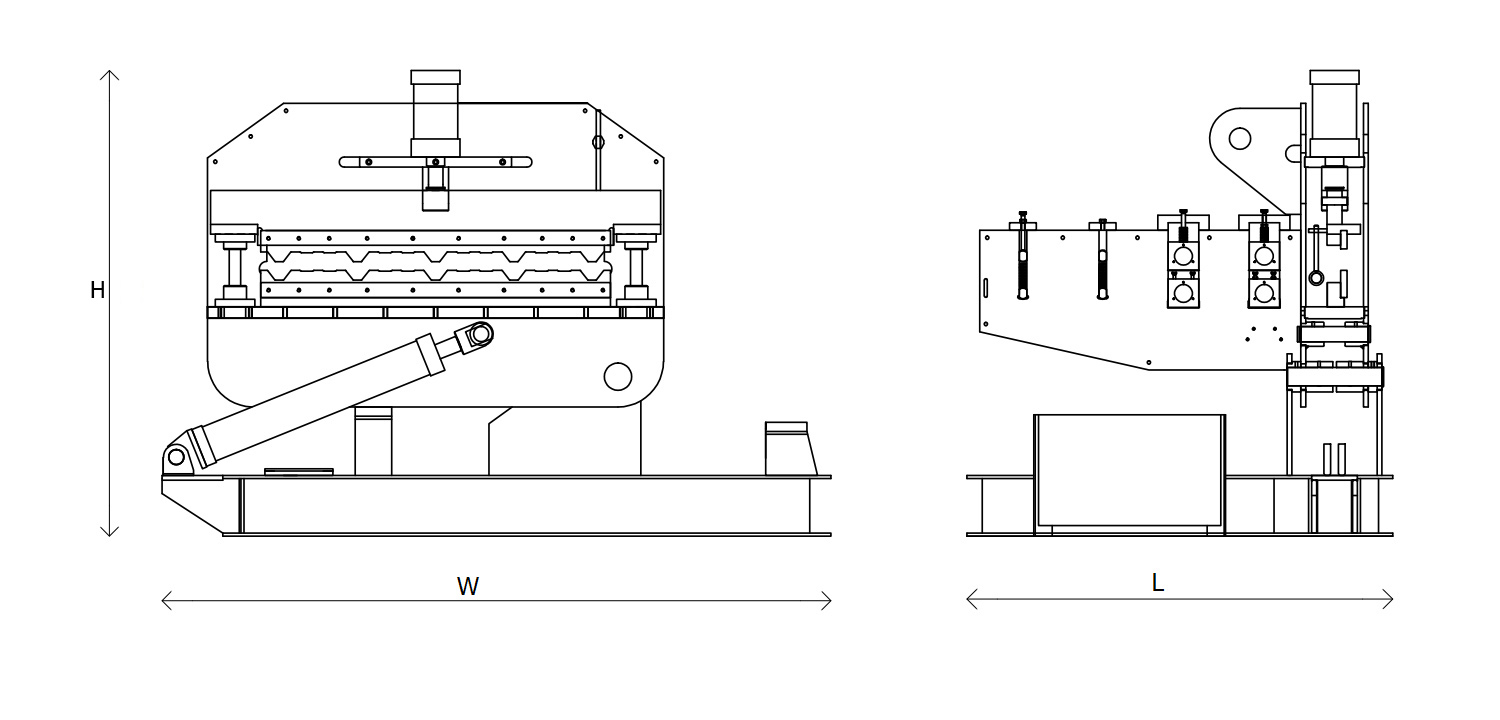

• Machine Dimensions (L x W x H) 2.0 m x 2.0 m x 2.0 m

Raw material

• Steel Thickness 0.2–0.6 mm (BMT)
• Feeding Width/ Coil Width 914–1450 mm
• Material PI & PPGI (Galvanized, Zinc, Color Coated Steel)
• Material Strength G300–G550

Production specification

• Rolling Transmission Servo Motor
• Rolling speed 10–20 m/min
• Control System PLC, HMI
• Pressing System Hydraulic
• Minimum curved radious 250 mm
• Tolerance for Steps ± 0.1 mm ( servo rolling transmission)
